Hot fill sport drinks and teas

Beverage filling technologies

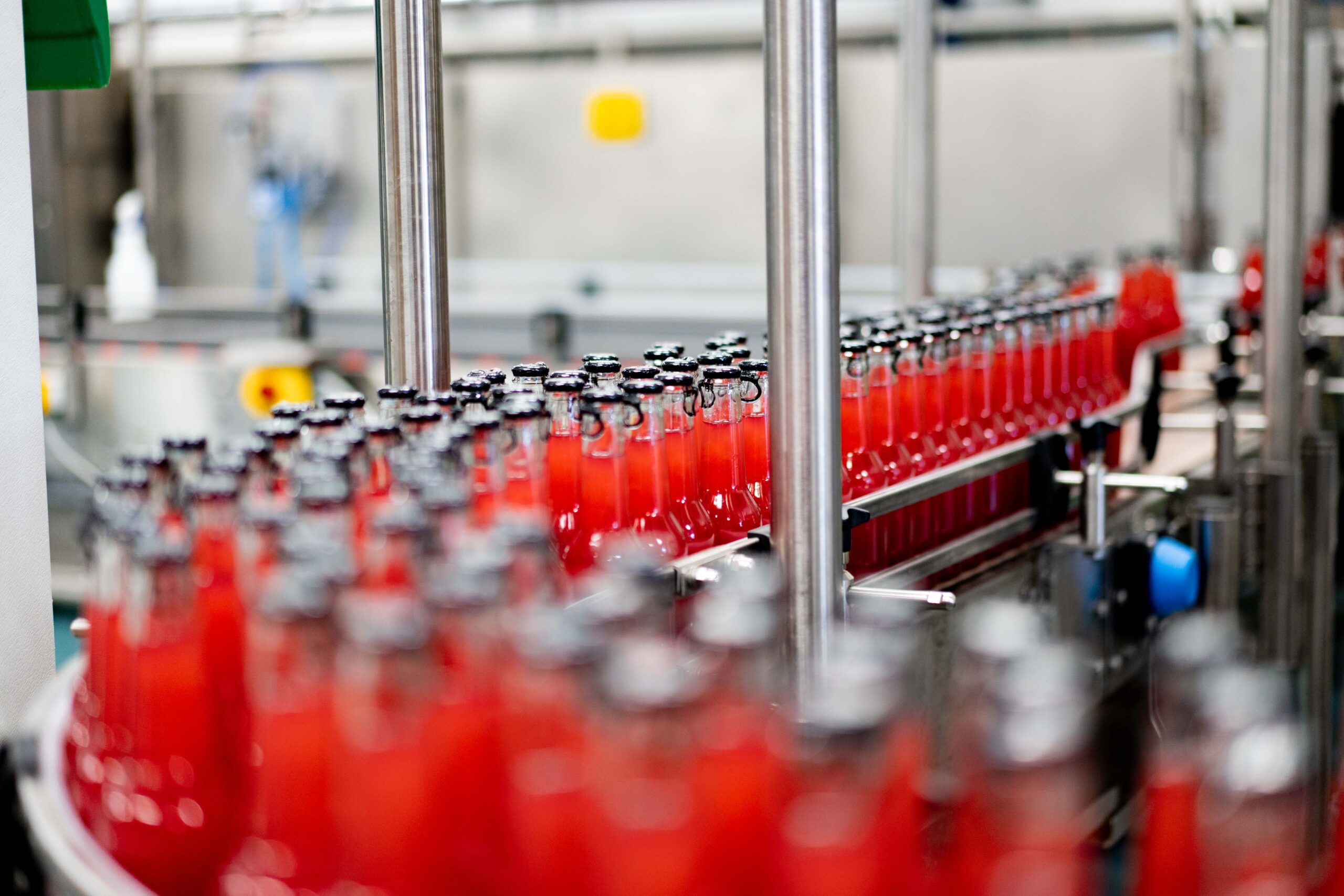

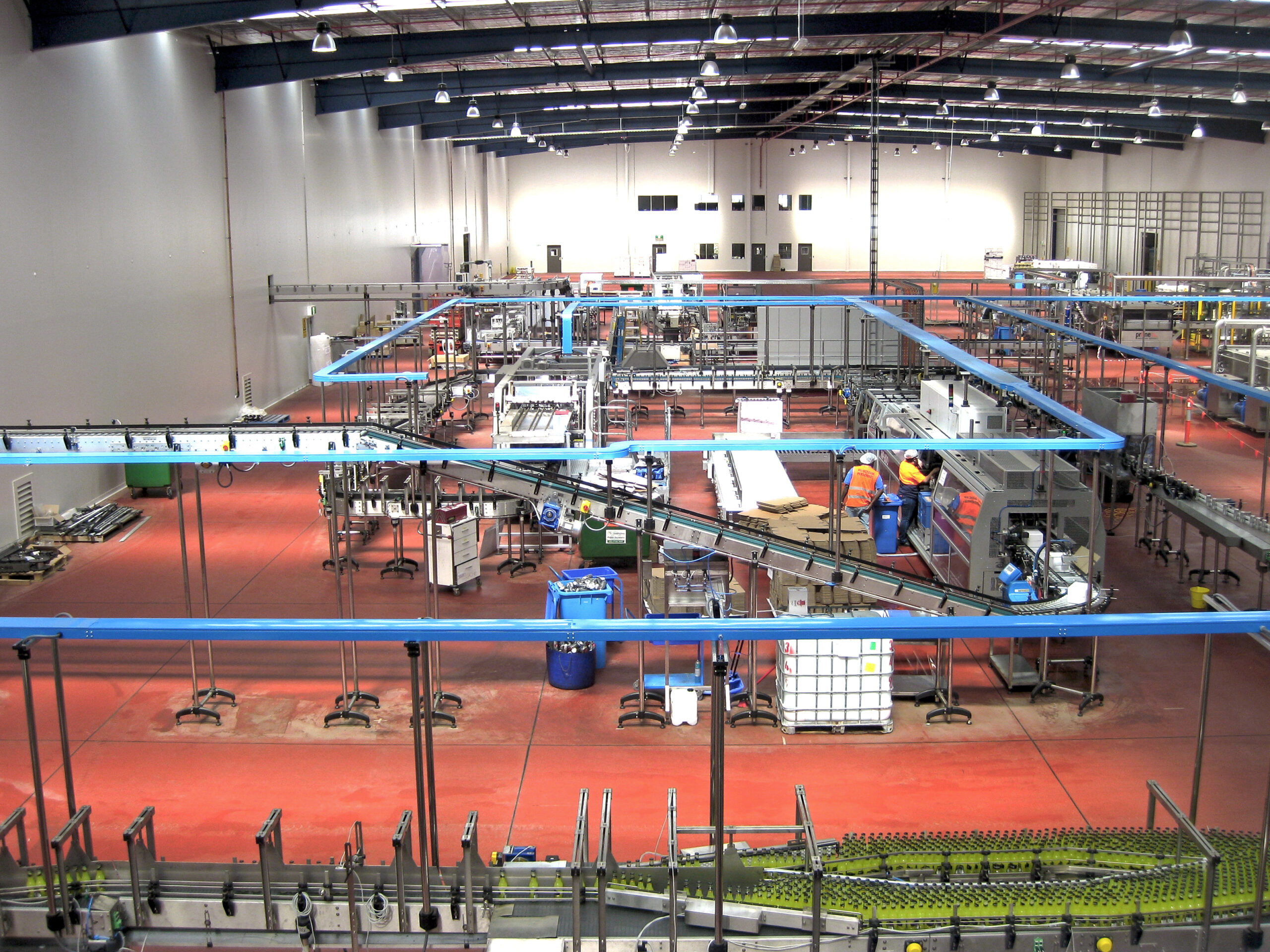

  • The hot fill system typically used for various types of beverages such as fruit juice, isotonic sport drinks and teas, utilizes product recycling between filler and flash pasteuriser or external recycling tank, and special design filling valves to enable keeping a constant product temperature during the filling process.

    Product is filled into either Heat-Set PET, glass and heat resistant cans.

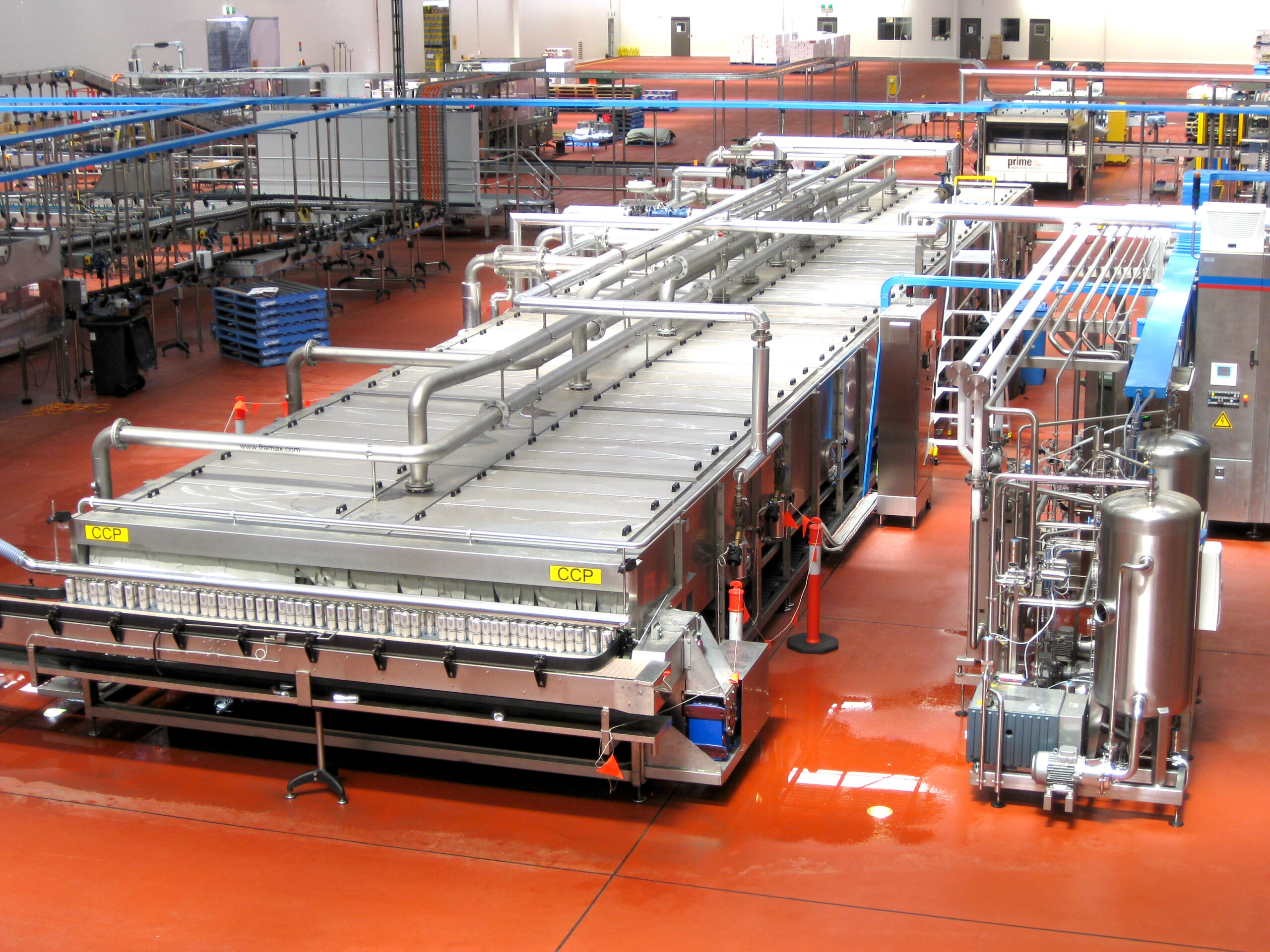

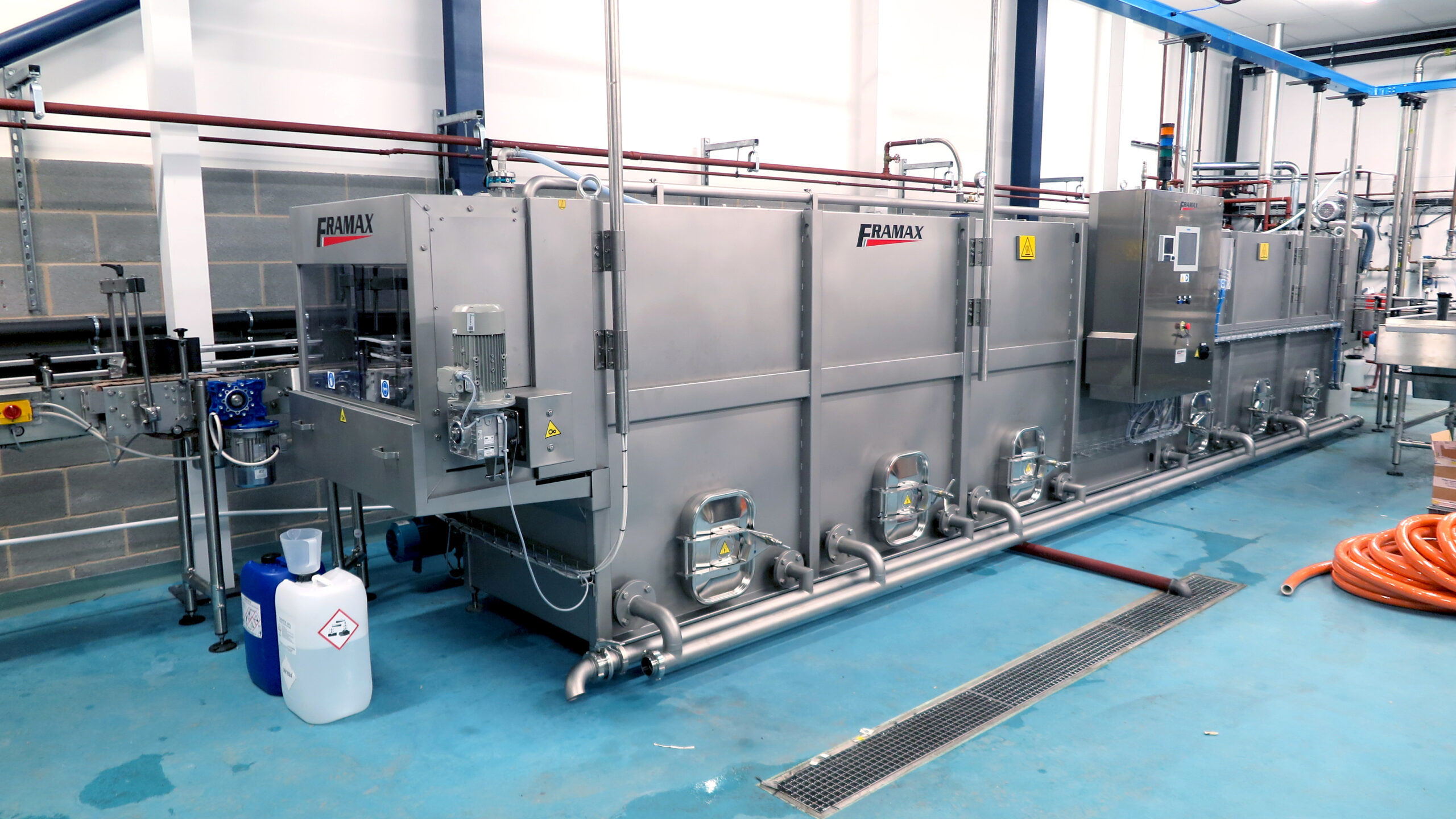

    Depending on the requirements, the line is provided with bottle turnover system for cap sterilisation followed by a cooling or pasteurising tunnel.

    All contact parts and circuits are designed to enable a thorough CIP (Cleaning In Place) process.

    The Hot Filling line is of course suitable also for cold fill products.

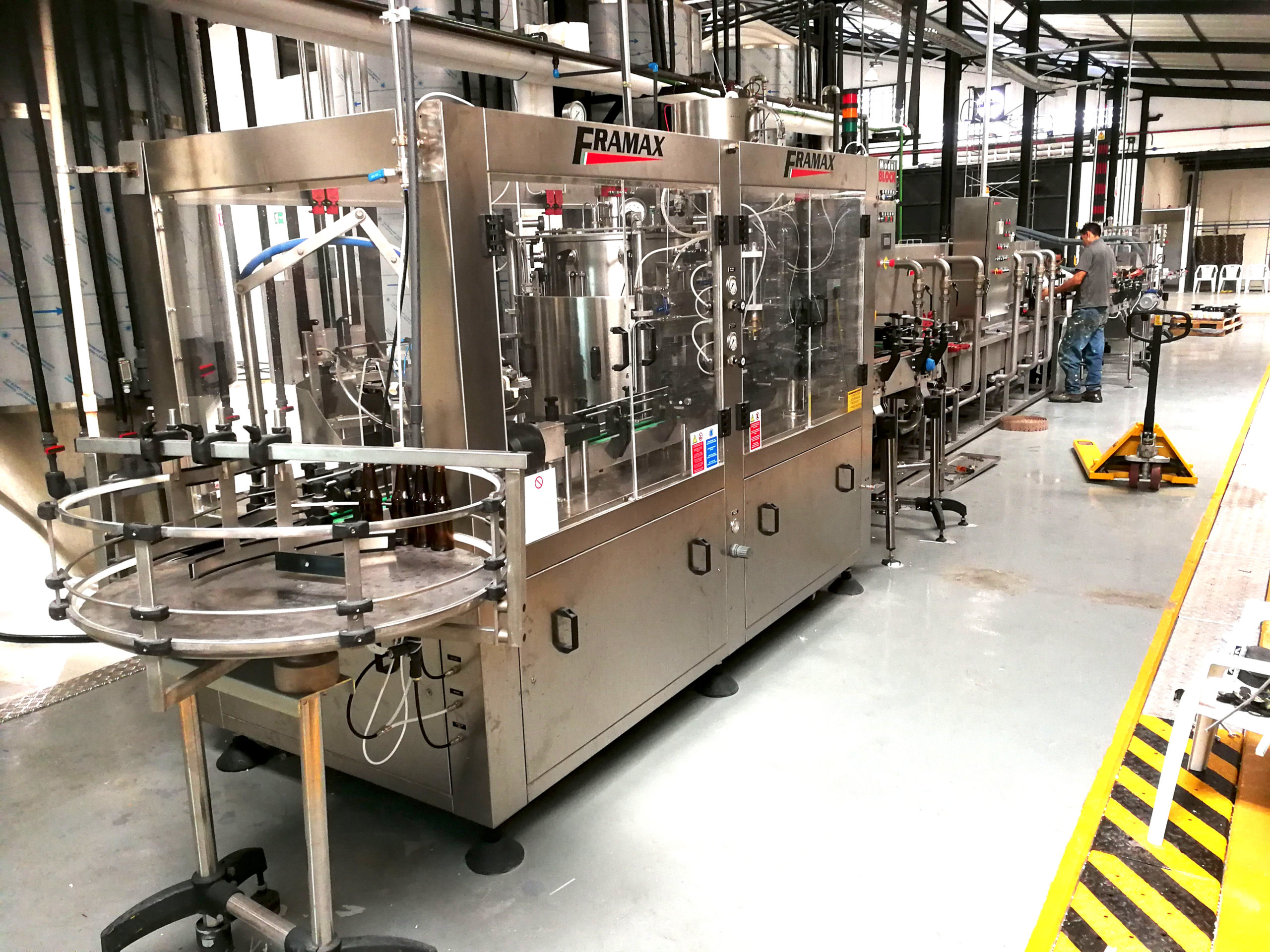

  • Our bottling machines can process many types of bottles (glass, PET, aluminum, polycarbonate, etc.) in a wide range of sizes and shapes.

    Our capping units are suitable for various different types of caps such as crown, plastic pre-threaded, aluminum ROPP, ring pull, natural cork, etc…



  • Our canning machines can process different types of cans and ends (standard, slim, sleek, etc.).

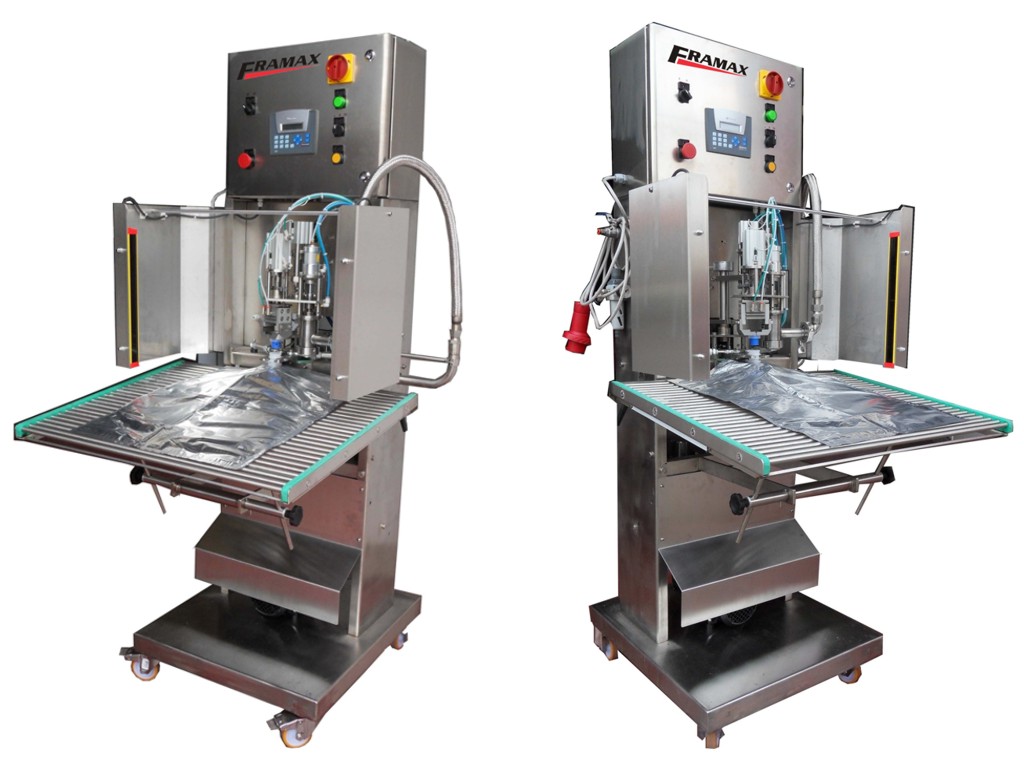

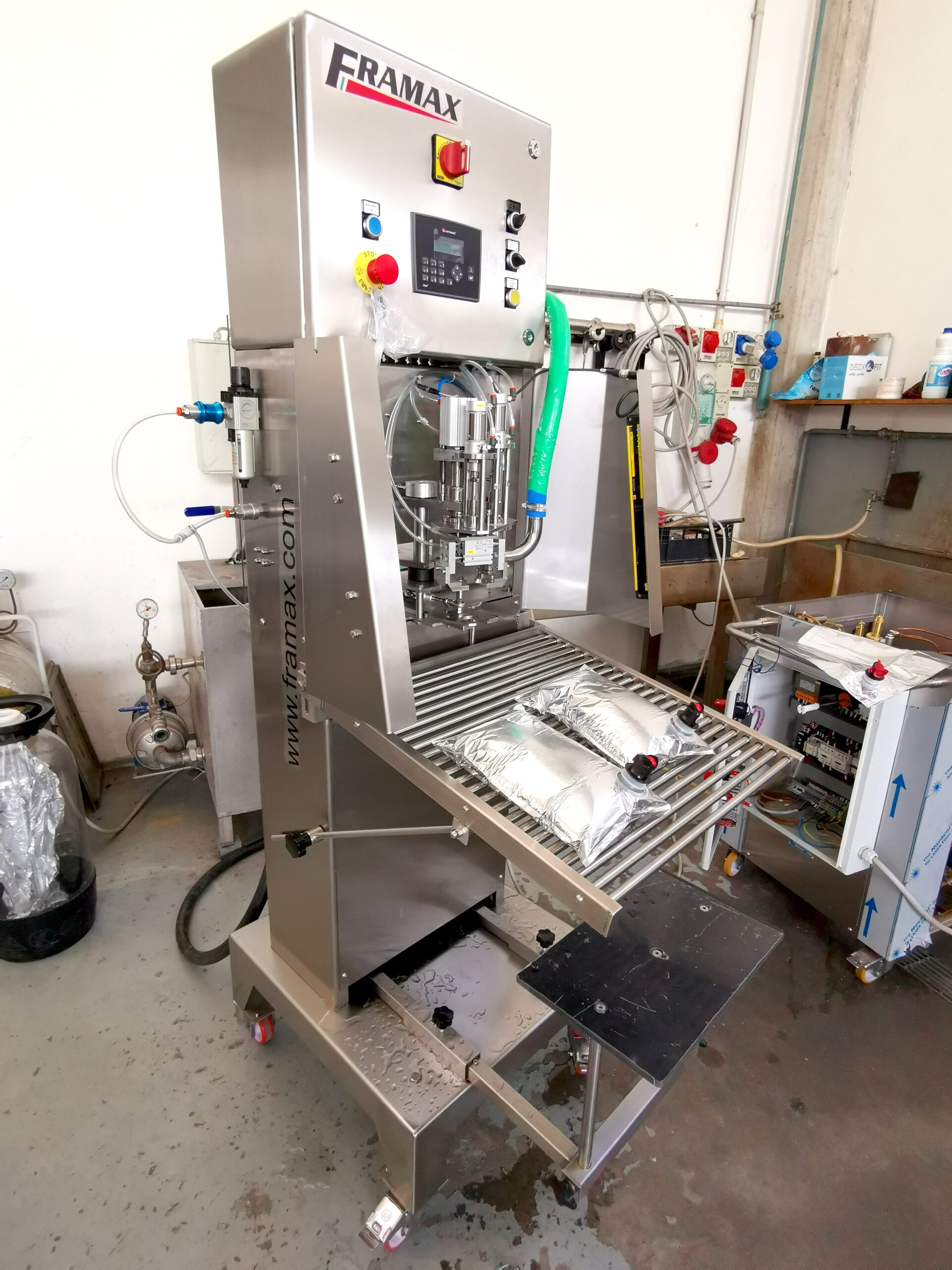

  • Automatic bag in box filling machines with manual or automatic bag feeding, able to fill a wide range of products, liquid and viscous, cold and hot fill.

    Please contact us to know more about our products for bag filling.

Filling systems:

  • Hot Filling

    Hot filling system suitable for juices and isotonic beverages.
    The principle of operation is similar to the gravity-low vacuum system, however the machine and its filling valves are designed to allow product recirculation in the tank and in the filling valves themselves in order to keep the constant filling temperature even in the eventuality of a machine stop.
    With the hot fill technology it is possible to fill up to 90°C, guaranteeing a constant filling temperature and filling level accuracy.

  • Low Vacuum-Gravity

    Low vacuum-gravity filling systems are recommended for still, non-dense products such as for example still water, wine, alcoholic beverages (vodka, whiskey, brandy, etc), chemical products and generically any kind of flat non viscous liquids.
    Various models of filling valves are available within this category, specifically designed to cater for the filling level requirements, bottle shape, neck shape and product.
    Several optional features are available such as the “millimetric adjustment of the filling level” controlled directly from the user interface panel, air return outside the filling tank (to avoid the air from the bottles contaminating the product in the filler bowl), centralized level regulation and more.

  • Electronic Volumetric Flow Meter

    Electronic Volumetric flow meter filling system.
    These systems assure maximum dosing precision and do not require any maintenance.
    Thanks to the extremely small number of functional elements, the filling machine can be sanitized very easily and the Electronic Volumetric filling allows optimized filling under a microbiological profile.
    The system works without pressure in the bottle and with a light positive pressure inside the filler bowl, allowing to process both high density and liquid products in containers of different materials.
    The filling is controlled by the PLC that gives the go-ahead to start the filling when the sensor detects the presence of the bottles.
    The electronic dosing devices with mass or magnetic flow meters show that the preset filling volume has been reached and control the closing of the valve, allowing a dosing precision of 0,2%.
    As a result we obtain a precise volumetric filling and a microbiological safety.
